Notching machine is suitable for making groove for all kinds of
cardboard v grooving machine

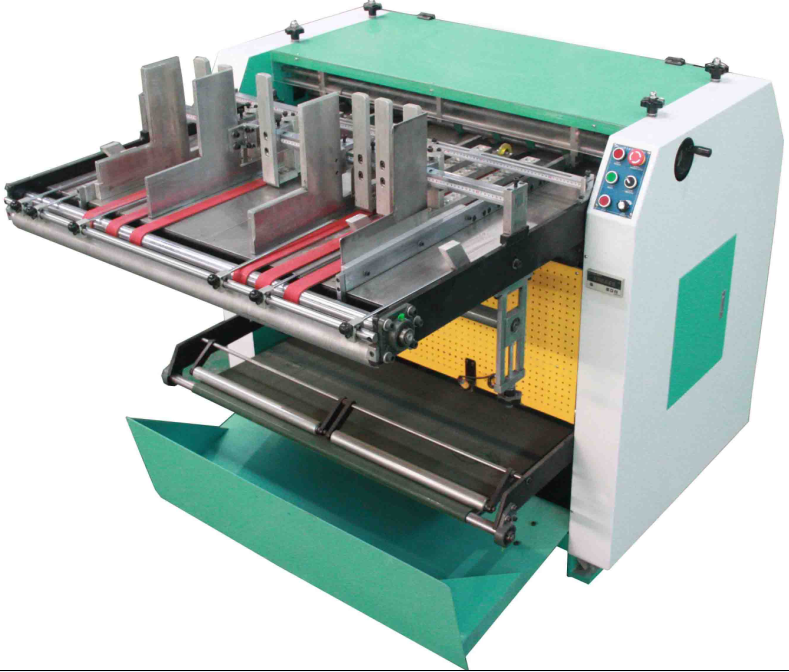

Fully Automatic Notching machine is suitable for making groove for
all kinds of cardboard. Two-way and automatic feeding plate, at the
same time, automatic material receiving. The machine is equipped
with automatic overload protection function.
Features:
1, The slotting effect: no edge, no dust, v groove surface smooth,
no noise.
2, Environmental and energy saving:the total power consumption of
1.5kw, slotted cardboard materials under the angle of a whole
recyclable.
3, The production efficiency: small size products can be on both
sides at the same time, a dual-purpose machines.
4, The tool life: equipped with a dedicated machine(simple), need
only 1.5-2minutes to whet a knife. Customers can own.
5, Angle of cutting tool adjustable: two independent knives fixture
with a fixed blade, different angles no need to make the knife, it
can regulate on the machine.
6, Two-way and automatic feeding plate, at the same time, automatic
material receiving.
7, It can produce about 100 boxes per minute (size300mm×300mm).
8, The belt moves automatically take the positive.
9, Electronic counting.
10, Automatic overload protection.
| Specifications: |
Cardboard size | W: 80-1050mm |
| L: 90-800mm |
| Gap between two slots | 0-1000mm |
| Cardboard thickness | 0.2-5.0mm |
| Slotting Number | 8pcs/one time |
| Slotting speed | 10-35 m/min |
| Power | 1.5kw |
| Voltage | 220V |
| Machine Dimension | L1500*W1300*H1250mm |
| Machine Weight | 1300kg |
Packing:
Company Introduction:
LiShunyuan was founded in 2001, located in Dongguan city, Guangdong
Province, and has a modern standard workshops of 20000 square
meters, after 18 years of development, the company in domestic has
formed a complete sales network and after-sales service system,
product sales network and after-sales service system, product sales
throughout the whole of China, exported to Europe and the united
states, Southeast Asia, South America, Middle East, Africa and so
on more than 40 countries and Regions.
Innovation is the core competitiveness of Lishunyuan. The company
owns independent intellectual property products including rigid box
series, clamshell box series,widely used in the production of gift
boxes, mobile phone boxes, cosmetic boxes, liquor & wine boxes ,
and other boutique boxes.
Our Services & Strength
We have competitive machines, the quality team and the thoughtful
service. Lishunyuan emphasizes on giving complete support to our
customers, from consultation and development of the machine as per
client requirements, to production of the box machine and providing
extensive after sales service.Dedicated to providing the highest
production rates, maximum accuracy and consistent pouch quality of
boutique boxes as per each individual client’s requirements.
Certification:
Workshop:
Exhibition:
