    Automatic Book Style Box Assembly Machine With High Safety Performance

    Ask Lasest Price
    Brand Name : Lishunyuan
    Model Number : LY-1000SXH
    Price : Negotiable
    Payment Terms : L/C, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 20 sets per month
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

    Automatic Book Style Box Assembly Machine With High Safety Performance

    LY-1000SXH Automatic Book Style Box Assembling Machine


    The book style box assembling machine is simple and convenient to use, high in efficiency, glue saving and accurate in positioning, and is the preferred equipment for book style box and cosmetic box manufacturers to reduce production costs. The machine uses mechanical arm to automatically position and spray glue, which can be adjusted according to the size requirement of the product. Strip spraying reduces the waste of glue and ensures accurate precision, strong adhesion and no leakage. The machine adopts the positioning press box, which improves the accuracy of the inner box shell in the positioning process, reduces the rejection rate, and the new products are introduced, which are well received by customers.
    Book box assembly machine is mainly used for spraying glue on moon cake boxes, food boxes, wine boxes, makeup boxes and other book boxes. One or two inner boxes can be positioned at the same time. The inner box material is divided into paper, light glue and plastic.
    Features
    • High safety performance
    • Fast adjustment due ot digital input of glue spraying, box pressing & position shifting
    • Adopts strip glue spraying for glue saving & strong adhension without leakage
    • Stable & accurate pressing for inner box
    • Servo motors & automatic control system from Japan
    • Easy to operate

    Technical Parameters


    Case maker size
    W: 400 - 130mm
    L: 900 - 130mm
    Paper thickness
    80 - 300g/m2
    Max. paper stacking height
    800mm
    Cardboard thickness
    1 - 3mm
    Finished box size (W*L*H)
    L: 100 - 600mm
    W: 80 - 400mm
    H: 15 - 110mm
    Production rate
    18 - 27pcs/min
    Positioning accuracy
    ±0.3mm
    Power Supply
    220V
    Constant power
    6KW
    Air pressure
    0.6 - 0.8MPa
    Nozzle quantity
    1
    Machine weight
    800KG
    Machine size
    L3400 * W2000 * H1900mm

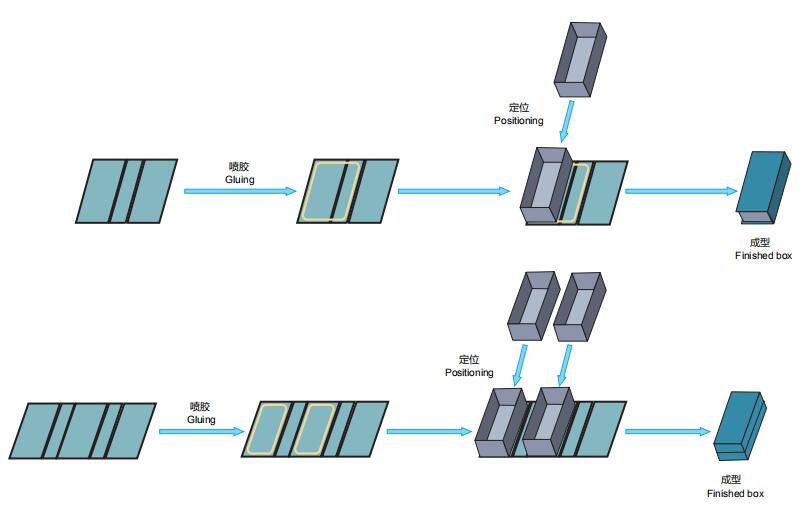

    Process Flow
