    LY- 412CCD High Speed Rigid Box Making Equipment with two forming heads and bubble pressing function

    Ask Lasest Price
    Brand Name : Lishunyuan
    Model Number : LY- 412CCD
    Certification : CE
    Price : US Dollar 120000-138000 per set
    Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    LY- 412CCD High Speed Rigid Box Making Equipment with two forming heads and bubble pressing function

    LY-412CCD Automatic visual positioning box making machine


    Description


    LY-412CCD Automatic High Speed Rigid Box Making Machine is the one of the most advanced fully auto box machines by our company. It is suitable to make various types of rigid boxes for mass production, such as jewelry boxes, gift boxes, cosmetic boxes, and other rigid high-end boxes. the maximum length 400mm, maximum width 350mm which covers a larger range compared to the previous machines and meets better the market.



    Features


    1. Three independent modules can be flexibly split and combined to meet different product requirements.

    2. Two 5-megapixel industrial cameras and YAMAHA manipulator are adopted for positioning, with positioning accuracy of ±0.1mm;

    3, high speed molding, speed up to 25-35 PCS /min.

    4. The folding depth is deep and can be folded into 100mm

    5, the use of an independent man-machine control system, the machine adjustment time is short, fast version.

    6, the positioning machine can be infinitely extended to do a variety of different products, reducing the risk of repeated investment of users to buy the machine.


    Parameters

    Specifications:
    Paper SizeW:95 - 600mm
    L: 180-835mm
    Paper thickness80-300g/m2
    Max.paper stacking height800mm
    Cardboard thickness1-3mm
    Finished box size W*L*HL:70-400mm
    W:60-350mm
    H:15-120mm
    Ear overlapping size7-100mm
    Production Capacity20-30pcs/min
    Precision±0.1mm
    Power Supply380V/50Hz
    Max power15kw/380v
    Air pressure0.5-0.7mpa/320NL/min
    Glue tank volume30kg
    Machine weight7500kg
    Machine sizeL8000*W3800*H2400mm

    Sample Boxes
    Detailed Images

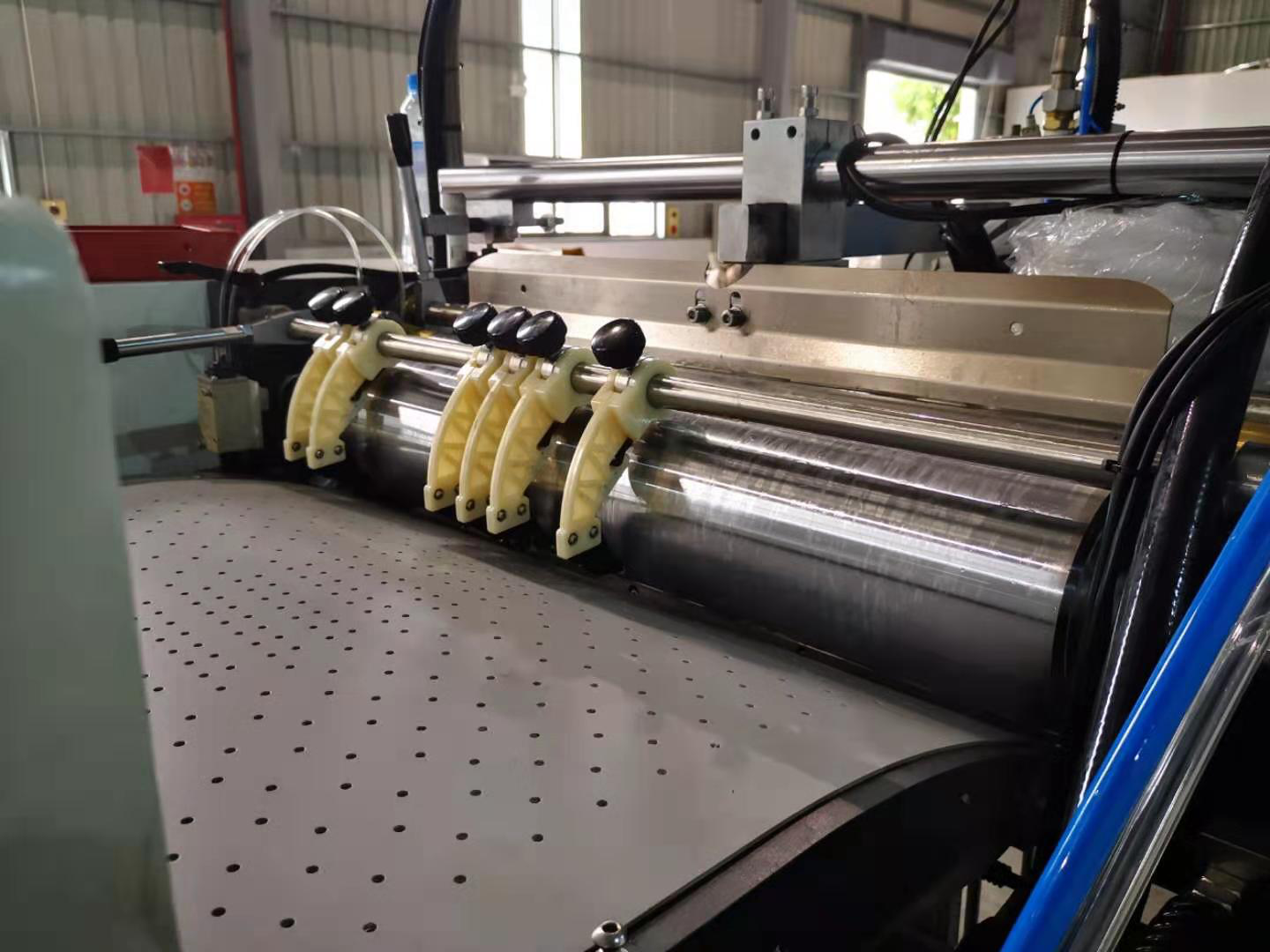

    Feeder

    1. Feeder control by servo motor
    2. Big diameter pneumatic vacuum control valves
    3. The rubber pressure roller for the feeding-in paper
    4. Antistatic platform for paper
    5. The automatic lifting function for feeding stack
    6. Feeding stack auto stop when top paper in position Feeder control by servo motor



    1. Japan Yamaha Robot Arm for spotting the grey board box

    2. Germany camera with Japan Lens in 10 million Pixel tracing system

    3. Double Camera with XY Spool for positioning.


    Company Introduction

    LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province Daojiao town Nanya Industrial zone, and has a modern standard workshops of 20000 square meters, after 17 years of development, the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.


    Innovation is the core competitiveness of Lishunyuan. The company owns independent intellectual property products including rigid box series, clamshell box series,widely used in the production of gift boxes, mobile phone boxes, cosmetic boxes, liquor & wine boxes , and other boutique boxes.
