    LY-485C-PK Automatic Case Making Machine book case making machine speed up to 20-30pcs/min

    LY-485C-PK Automatic Case Making Machine

    02 product LY-485C-PK.pdf


    LY-485C-PK is composed by visual positioning module and four-side wrapping module. It's suitable for the production of all types of book shape case (such as mobile phone boxes, confectionery boxes, Tea boxes, cosmetics boxes) hardcover bookcase, notebook covers, desk calendars, folders, etc.


    Features

    1. Includes 2 independent modules, which can be assembled or disassembled for the different production demands;
    2. Multi-functional positioning module: applicable for the positioning of box, case & lining;
    3. Can be equipped with box forming module for the production of rigid boxes;
    4. Adopts the technology of two industrial cameras with 5 megapixels, and YAMAHA robot arm to position, high positioning accuracy (±0.1mm);
    5. High-speed production speed up to 20-30pcs/min;
    6. Less setting time due to independent HMI control system;
    7. Mainframe module can be adjusted to position rigid box with the accuracy of ± 0.1mm;
    8. Option Device: can be matched with edge mounting machine, splicing board box making machine, and pneumatic machine. It can be infinitely extended to produce different kinds of products.

    Parameters


    Paper size(L*W)
    L 180-850mm
    W 95-600mm

    Finished box size

    L 80-800mm
    W 80-400mm
    Production speed
    20-30pcs/min
    Positioning accuracy
    ±0.01mm
    Min. center bar size
    15mm
    Min. size of side panel
    30mm
    Paper thickness
    80-300g/m2
    Power supply
    380V/50Hz/3phases
    Max. power
    12KW
    Constant power
    10KW
    Machine dimension
    L6800xW2450xH2000mm

    Process Flow

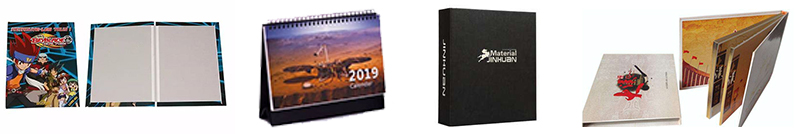

    Sample Cases



    FAQ:


    1.What about machine warranty?----1 year warranty including free machine parts replacement ( consumables are not included).


    2.What is the production time while placing order?---- Within 7-30 workdays.


    3.Do you have stock product to sell?----Normally we do,it depends on how many sets do you need .


    4.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case,all are confirm to export packing standard.


    5.How about after-sales service process?----When your machine has problem, just contact your sales and we will solve your problem ASAP.


    6.Are you a manufacturer?----Yes, we are a manufacturer with over 18 years professional experience .


    7.What is the minimum quantity for order?----1 set, we done business step by step with high quality products and excellent services.


    8.Do you inspect the finished products?----Yes, each step of production products will be inspection by our QC department and the running inspection video will be sent to to you for your verification before shipping.
